Fire Retardant Filter Paper Making Machine

Fire Retardant Filter Paper Making Machine

1. This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.
2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.(can match our paper wrapper)
Online Inquiry Contact Us

Product Details

Application:

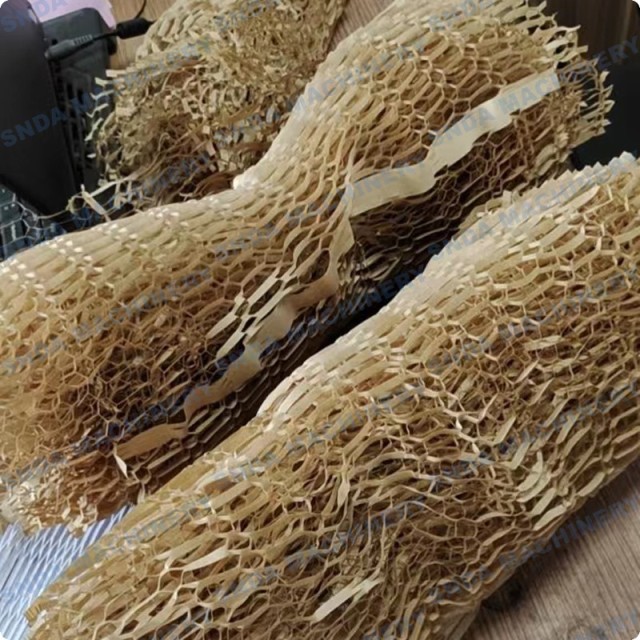

This honeycomb filter paper making machine is our newest design accord to customer requirement, the main material of paper is the flame resistant paper or flame retardant paper,fire retardant paper,after die cutting and stitching online,the finished paper in roll can be used as filter material.

Technical parameters:

Machine model

SD-PH800

Max material width

700mm

Machine working speed

0-100m/min adjustable

Unwinding diameter

0-1200mm

Rewinding diameter

0-300mm(600mm for flame retardant paper)

Unwinding roll weight

Max. 1 Ton

Unwinding shaft

3”inflatable air shaft

Rewinding shaft

1”/1.5”/2”/3” air shaft (choose either one,usually is 1.5”)

Machine size

3200*1350*1300mm(LxWxH)

Machine weight

1800KG

Power supply

380V 3 Phase or as customer requirement
